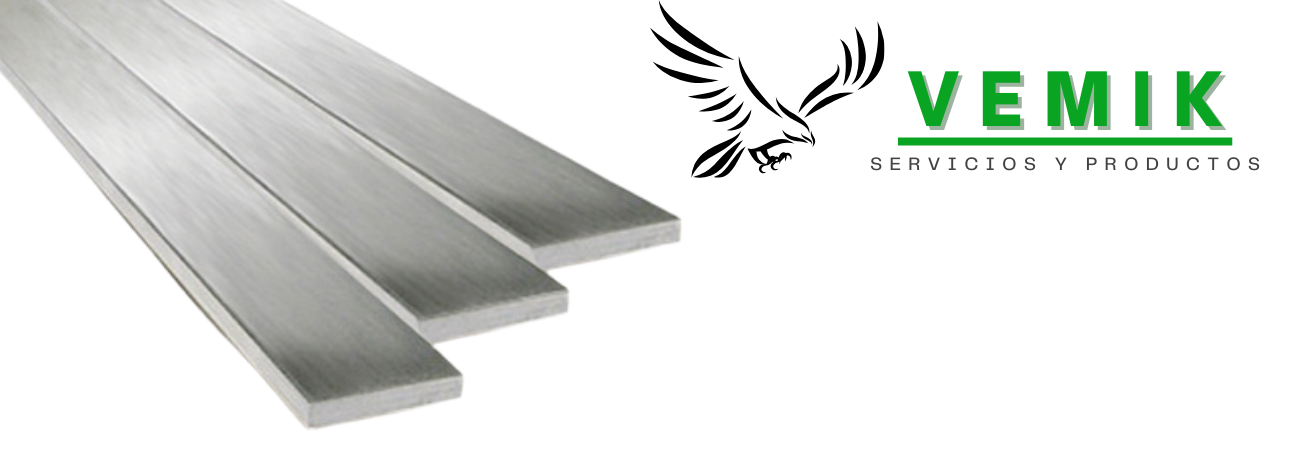

Solera de Aluminio
La solera de aluminio es un perfil plano ideal para fabricación, refuerzo y ensambles en industria y construcción ligera. Se distingue por su bajo peso, resistencia a la corrosión y facilidad para cortar, perforar, doblar y maquinar, lo que la hace muy útil en trabajos de mantenimiento, soportes, guías, bastidores y aplicaciones generales donde se requiere un material durable y práctico.
Contamos con:
-
Solera de Aluminio aleación 6061 (mayor resistencia, ideal para maquinado y uso estructural)
-
Solera de Aluminio aleación 6063 (mejor acabado, ideal para estética/anodizado)
-
Diferentes espesores, anchos y largos (según disponibilidad)
-
Corte a medida y asesoría para elegir la opción adecuada según tu proyecto
-
Entrega estimada 24 a 72 horas (sujeto a disponibilidad)
Los pesos y las dimensiones pueden presentar variaciones por tolerancias de fabricación. Consulta con tu asesor comercial o contáctanos por el chat de ventas.
Medidas Soleras de Aluminio aleación 6063
| Descripción | Aleación | Temple | Alto (mm) | Pulgadas | Decimales | Ancho (mm) | Pulgadas | Decimales | Largo Estándar (m) | Peso x Metro (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| SOLERA DE ALUMINIO E/C 6063 T05 DE .080 X 73.02 MM | 6063 | T05 | 0.08 | 1/32 | 0.031 | 73.02 | 2 7/8 | 2.875 | 3.66 | 0.16 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 1.6 X 9.5 MM | 6063 | T05 | 1.6 | 1/16 | 0.062 | 9.5 | 3/8 | 0.275 | 3.66 | 0.03 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 1.6 X 12.7 MM | 6063 | T05 | 1.6 | 1/16 | 0.062 | 12.7 | 1/2 | 0.5 | 3.66 | 0.05 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 1.6 X 15.9 MM | 6063 | T05 | 1.6 | 1/16 | 0.062 | 15.9 | 5/8 | 0.625 | 3.66 | 0.07 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 1.6 X 19.0 MM | 6063 | T05 | 1.6 | 1/16 | 0.062 | 19 | 3/4 | 0.75 | 3.66 | 0.08 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 1.6 X 25.4 MM | 6063 | T05 | 1.6 | 1/16 | 0.062 | 25.4 | 1 | 1 | 3.66 | 0.11 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 1.6 X 38.1 MM | 6063 | T05 | 1.6 | 1/16 | 0.062 | 38.1 | 1 1/2 | 1.5 | 3.66 | 0.16 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 3.2 X 9.5 MM | 6063 | T05 | 3.2 | 1/8 | 0.125 | 9.5 | 3/8 | 0.275 | 3.66 | 0.06 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 3.2 X 12.7 MM | 6063 | T05 | 3.2 | 1/8 | 0.125 | 12.7 | 1/2 | 0.5 | 3.66 | 0.11 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 3.2 X 12.7 MM | 6063 | T05 | 3.2 | 1/8 | 0.125 | 12.7 | 1/2 | 0.5 | 3.66 | 0.11 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 3.2 X 15.9 MM | 6063 | T05 | 3.2 | 1/8 | 0.125 | 15.9 | 5/8 | 0.625 | 3.66 | 0.14 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 3.2 X 19.0 MM | 6063 | T05 | 3.2 | 1/8 | 0.125 | 19 | 3/4 | 0.75 | 3.66 | 0.16 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 3.2 X 25.4 MM | 6063 | T05 | 3.2 | 1/8 | 0.125 | 25.4 | 1 | 1 | 3.66 | 0.22 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 3.2 X 31.7 MM | 6063 | T05 | 3.2 | 1/8 | 0.125 | 31.7 | 1 1/4 | 1.25 | 3.66 | 0.28 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 3.2 X 38.1 MM | 6063 | T05 | 3.2 | 1/8 | 0.125 | 38.1 | 1 1/2 | 1.5 | 3.66 | 0.33 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 3.2 X 44.4 MM | 6063 | T05 | 3.2 | 1/8 | 0.125 | 44.4 | 1 3/4 | 1.75 | 3.66 | 0.39 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 3.2 X 50.8 MM | 6063 | T05 | 3.2 | 1/8 | 0.125 | 50.8 | 2 | 2 | 3.66 | 0.45 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 3.2 X 76.2 MM | 6063 | T05 | 3.2 | 1/8 | 0.125 | 76.2 | 3 | 3 | 3.66 | 0.67 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 3.2 X 152.4 MM | 6063 | T05 | 3.2 | 1/8 | 0.125 | 152.4 | 6 | 6 | 3.66 | 1.35 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 4.8 X 12.7 MM | 6063 | T05 | 4.8 | 3/16 | 0.187 | 12.7 | 1/2 | 0.5 | 3.66 | 0.16 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 4.8 X 15.9 MM | 6063 | T05 | 4.8 | 3/16 | 0.187 | 15.9 | 5/8 | 0.625 | 3.66 | 0.21 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 4.8 X 19.0 MM | 6063 | T05 | 4.8 | 3/16 | 0.187 | 19 | 3/4 | 0.75 | 3.66 | 0.25 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 4.8 X 25.4 MM | 6063 | T05 | 4.8 | 3/16 | 0.187 | 25.4 | 1 | 1 | 3.66 | 0.33 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 4.8 X 31.7 MM | 6063 | T05 | 4.8 | 3/16 | 0.187 | 31.7 | 1 1/4 | 1.25 | 3.66 | 0.42 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 4.8 X 38.1 MM | 6063 | T05 | 4.8 | 3/16 | 0.187 | 38.1 | 1 1/2 | 1.5 | 3.66 | 0.50 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 4.8 X 44.4 MM | 6063 | T05 | 4.8 | 3/16 | 0.187 | 44.4 | 1 3/4 | 1.75 | 3.66 | 0.59 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 4.8 X 50.8 MM | 6063 | T05 | 4.8 | 3/16 | 0.187 | 50.8 | 2 | 2 | 3.66 | 0.67 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 4.8 X 63.5 MM | 6063 | T05 | 4.8 | 3/16 | 0.187 | 63.5 | 2 1/2 | 2.5 | 3.66 | 0.84 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 4.8 X 76.2 MM | 6063 | T05 | 4.8 | 3/16 | 0.187 | 76.2 | 3 | 3 | 3.66 | 1.01 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 4.8 X 101.6 MM | 6063 | T05 | 4.8 | 3/16 | 0.187 | 101.6 | 4 | 4 | 3.66 | 1.35 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 6.4 X 12.7 MM | 6063 | T05 | 6.4 | 1/4 | 0.25 | 12.7 | 1/2 | 0.5 | 3.66 | 0.22 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 6.4 X 15.9 MM | 6063 | T05 | 6.4 | 1/4 | 0.25 | 15.9 | 5/8 | 0.625 | 3.66 | 0.28 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 6.4 X 19.0 MM | 6063 | T05 | 6.4 | 1/4 | 0.25 | 19 | 3/4 | 0.75 | 3.66 | 0.33 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 6.4 X 25.4 MM | 6063 | T05 | 6.4 | 1/4 | 0.25 | 25.4 | 1 | 1 | 3.66 | 0.45 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 6.4 X 31.7 MM | 6063 | T05 | 6.4 | 1/4 | 0.25 | 31.7 | 1 1/4 | 1.25 | 3.66 | 0.56 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 6.4 X 38.1 MM | 6063 | T05 | 6.4 | 1/4 | 0.25 | 38.1 | 1 1/2 | 1.5 | 3.66 | 0.67 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 6.4 X 44.4 MM | 6063 | T05 | 6.4 | 1/4 | 0.25 | 44.4 | 1 3/4 | 1.75 | 3.66 | 0.79 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 6.4 X 50.8 MM | 6063 | T05 | 6.4 | 1/4 | 0.25 | 50.8 | 2 | 2 | 3.66 | 0.90 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 6.4 X 63.5 MM | 6063 | T05 | 6.4 | 1/4 | 0.25 | 63.5 | 2 1/2 | 2.5 | 3.66 | 1.13 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 6.4 X 76.2 MM | 6063 | T05 | 6.4 | 1/4 | 0.25 | 76.2 | 3 | 3 | 3.66 | 1.35 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 6.4 X 101.6 MM | 6063 | T05 | 6.4 | 1/4 | 0.25 | 101.6 | 4 | 4 | 3.66 | 1.81 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 6.4 X 127 MM | 6063 | T05 | 6.4 | 1/4 | 0.25 | 127 | 5 | 5 | 3.66 | 2.26 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 6.4 X 152.4 MM | 6063 | T05 | 6.4 | 1/4 | 0.25 | 152.4 | 6 | 6 | 3.66 | 2.71 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 6.4 X 203.2 MM | 6063 | T05 | 6.4 | 1/4 | 0.25 | 203.2 | 8 | 8 | 3.66 | 3.62 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 9.5 X 12.7 MM | 6063 | T05 | 9.5 | 3/8 | 0.275 | 12.7 | 1/2 | 0.5 | 3.66 | 0.24 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 9.5 X 19.0 MM | 6063 | T05 | 9.5 | 3/8 | 0.275 | 19 | 3/4 | 0.75 | 3.66 | 0.37 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 9.5 X 25.4 MM | 6063 | T05 | 9.5 | 3/8 | 0.275 | 25.4 | 1 | 1 | 3.66 | 0.49 |
| SOLERA DE ALUMINIO 6063 T05 DE 9.5 X 25.4 MM | 6063 | T05 | 9.5 | 3/8 | 0.275 | 25.4 | 1 | 1 | 3.66 | 0.49 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 9.5 X 31.7 MM | 6063 | T05 | 9.5 | 3/8 | 0.275 | 31.7 | 1 1/4 | 1.25 | 3.66 | 0.62 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 9.5 X 38.1 MM | 6063 | T05 | 9.5 | 3/8 | 0.275 | 38.1 | 1 1/2 | 1.5 | 3.66 | 0.74 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 9.5 X 50.8 MM | 6063 | T05 | 9.5 | 3/8 | 0.275 | 50.8 | 2 | 2 | 3.66 | 0.99 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 9.5 X 63.5 MM | 6063 | T05 | 9.5 | 3/8 | 0.275 | 63.5 | 2 1/2 | 2.5 | 3.66 | 1.24 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 9.5 X 76.2 MM | 6063 | T05 | 9.5 | 3/8 | 0.275 | 76.2 | 3 | 3 | 3.66 | 1.49 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 9.5 X 101.6 MM | 6063 | T05 | 9.5 | 3/8 | 0.275 | 101.6 | 4 | 4 | 3.66 | 1.99 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 9.5 X 127 MM | 6063 | T05 | 9.5 | 3/8 | 0.275 | 127 | 5 | 5 | 3.66 | 2.49 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 9.5 X 203.2 MM | 6063 | T05 | 9.5 | 3/8 | 0.275 | 203.2 | 8 | 8 | 3.66 | 3.98 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 12.7 X 19.0 MM | 6063 | T05 | 12.7 | 1/2 | 0.5 | 19 | 3/4 | 0.75 | 3.66 | 0.67 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 12.7 X 25.4 MM | 6063 | T05 | 12.7 | 1/2 | 0.5 | 25.4 | 1 | 1 | 3.66 | 0.90 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 12.7 X 31.7 MM | 6063 | T05 | 12.7 | 1/2 | 0.5 | 31.7 | 1 1/4 | 1.25 | 3.66 | 1.13 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 12.7 X 38.1 MM | 6063 | T05 | 12.7 | 1/2 | 0.5 | 38.1 | 1 1/2 | 1.5 | 3.66 | 1.35 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 12.7 X 50.8 MM | 6063 | T05 | 12.7 | 1/2 | 0.5 | 50.8 | 2 | 2 | 3.66 | 1.81 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 12.7 X 63.5 MM | 6063 | T05 | 12.7 | 1/2 | 0.5 | 63.5 | 2 1/2 | 2.5 | 3.66 | 2.26 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 12.7 X 76.2 MM | 6063 | T05 | 12.7 | 1/2 | 0.5 | 76.2 | 3 | 3 | 3.66 | 2.71 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 12.7 X 101.6 MM | 6063 | T05 | 12.7 | 1/2 | 0.5 | 101.6 | 4 | 4 | 3.66 | 3.62 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 12.7 X 127 MM | 6063 | T05 | 12.7 | 1/2 | 0.5 | 127 | 5 | 5 | 3.66 | 4.52 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 12.7 X 203.2 MM | 6063 | T05 | 12.7 | 1/2 | 0.5 | 203.2 | 8 | 8 | 3.66 | 7.24 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 19.0 X 25.4 MM | 6063 | T05 | 19 | 3/4 | 0.75 | 25.4 | 1 | 1 | 3.66 | 1.35 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 19.0 X 203.2 MM | 6063 | T05 | 19 | 3/4 | 0.75 | 203.2 | 8 | 8 | 3.66 | 10.86 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 25.4 X 63.5 MM | 6063 | T05 | 25.4 | 1 | 1 | 63.5 | 2 1/2 | 2.5 | 3.66 | 4.52 |
| SOLERA DE ALUMINIO E/C 6063 T05 DE 25.4 X 203.2 MM | 6063 | T05 | 25.4 | 1 | 1 | 203.2 | 8 | 8 | 3.66 | 14.48 |
Medidas Soleras de Aluminio aleación 6061 T06
| Descripción | Aleación | Temple | Alto (mm) | Pulgadas | Decimales | Ancho (mm) | Pulgadas | Decimales | Largo estándar (m) | Peso x metro |
|---|---|---|---|---|---|---|---|---|---|---|
| SOLERA DE ALUMINIO E/R 6061 T06 DE 3.2 X 50.8 MM | 6061 | T06 | 3.2 | 1/8 | 0.125 | 50.8 | 2 | 2 | 3.66 | 0.45 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 3.2 X 101.6 MM | 6061 | T06 | 3.2 | 1/8 | 0.125 | 101.6 | 4 | 4 | 3.66 | 0.90 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 4.8 X 15.9 MM | 6061 | T06 | 4.8 | 3/16 | 0.187 | 15.9 | 5/8 | 0.625 | 3.66 | 0.21 |
| SOLERA DE ALUMINIO E/R 6101 T06 DE 4.8 X 50.8 MM | 6061 | T06 | 4.8 | 3/16 | 0.187 | 50.8 | 2 | 2 | 3.66 | 0.67 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 4.8 X 76.2 MM | 6061 | T06 | 4.8 | 3/16 | 0.187 | 76.2 | 3 | 3 | 3.66 | 1.01 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 4.8 X 101.6 MM | 6061 | T06 | 4.8 | 3/16 | 0.187 | 101.6 | 4 | 4 | 3.66 | 1.35 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 6.4 X 15.9 MM | 6061 | T06 | 6.4 | 1/4 | 0.25 | 15.9 | 5/8 | 0.625 | 3.66 | 0.28 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 6.4 X 31.7 MM | 6061 | T06 | 6.4 | 1/4 | 0.25 | 31.7 | 1 1/4 | 1.25 | 3.66 | 0.56 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 6.4 X 44.4 MM | 6061 | T06 | 6.4 | 1/4 | 0.25 | 44.4 | 1 3/4 | 1.75 | 3.66 | 0.79 |
| SOLERA DE ALUMINIO E/R 6101 T06 DE 6.4 X 76.2 MM | 6061 | T06 | 6.4 | 1/4 | 0.25 | 76.2 | 3 | 3 | 3.66 | 1.35 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 6.4 X 127 MM | 6061 | T06 | 6.4 | 1/4 | 0.25 | 127 | 5 | 5 | 3.66 | 2.26 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 6.4 X 203.2 MM | 6061 | T06 | 6.4 | 1/4 | 0.25 | 203.2 | 8 | 8 | 3.66 | 3.62 |
| SOLERA DE ALUMINIO 6061 T06 DE 6.4 X 254.0 MM | 6061 | T06 | 6.4 | 1/4 | 0.25 | 254 | 10 | 10 | 3.66 | 4.52 |
| SOLERA DE ALUMINIO 6061 T06 DE 6.4 X 304.8 MM | 6061 | T06 | 6.4 | 1/4 | 0.25 | 304.8 | 12 | 12 | 3.66 | 5.43 |
| SOLERA DE ALUMINIO 6061 T06 DE 6.4 X 355.6 MM | 6061 | T06 | 6.4 | 1/4 | 0.25 | 355.6 | 14 | 14 | 3.66 | 6.33 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 9.5 X 12.7 MM | 6061 | T06 | 9.5 | 3/8 | 0.275 | 12.7 | 1/2 | 0.5 | 3.66 | 0.24 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 9.5 X 63.5 MM | 6061 | T06 | 9.5 | 3/8 | 0.275 | 63.5 | 2 1/2 | 2.5 | 3.66 | 1.24 |
| SOLERA DE ALUMINIO 6061 T06 DE 9.5 X 76.2 MM | 6061 | T06 | 9.5 | 3/8 | 0.275 | 76.2 | 3 | 3 | 3.66 | 1.49 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 9.5 X 127 MM | 6061 | T06 | 9.5 | 3/8 | 0.275 | 127 | 5 | 5 | 3.66 | 2.49 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 9.5 X 152.4 MM | 6061 | T06 | 9.5 | 3/8 | 0.275 | 152.4 | 6 | 6 | 3.66 | 2.98 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 9.5 X 203.2 MM | 6061 | T06 | 9.5 | 3/8 | 0.275 | 203.2 | 8 | 8 | 3.66 | 3.98 |
| SOLERA DE ALUMINIO 6061 T06 DE 9.5 X 203.2 MM | 6061 | T06 | 9.5 | 3/8 | 0.275 | 203.2 | 8 | 8 | 3.66 | 3.98 |
| SOLERA DE ALUMINIO 6061 T06 DE 9.5 X 254.0 MM | 6061 | T06 | 9.5 | 3/8 | 0.275 | 254 | 10 | 10 | 3.66 | 4.98 |
| SOLERA DE ALUMINIO 6061 T06 DE 9.5 X 304.8 MM | 6061 | T06 | 9.5 | 3/8 | 0.275 | 304.8 | 12 | 12 | 3.66 | 5.97 |
| SOLERA DE ALUMINIO 6061 T06 DE 9.5 X 355.6 MM | 6061 | T06 | 9.5 | 3/8 | 0.275 | 355.6 | 14 | 14 | 3.66 | 6.97 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 12.7 X 31.7 MM | 6061 | T06 | 12.7 | 1/2 | 0.5 | 31.7 | 1 1/4 | 1.25 | 3.66 | 1.13 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 12.7 X 63.5 MM | 6061 | T06 | 12.7 | 1/2 | 0.5 | 63.5 | 2 1/2 | 2.5 | 3.66 | 2.26 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 12.7 X 127 MM | 6061 | T06 | 12.7 | 1/2 | 0.5 | 127 | 5 | 5 | 3.66 | 4.52 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 12.7 X 152.4 MM | 6061 | T06 | 12.7 | 1/2 | 0.5 | 152.4 | 6 | 6 | 3.66 | 5.43 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 12.7 X 203.2 MM | 6061 | T06 | 12.7 | 1/2 | 0.5 | 203.2 | 8 | 8 | 3.66 | 7.24 |
| SOLERA DE ALUMINIO 6061 T06 DE 12.7 X 203.2 MM | 6061 | T06 | 12.7 | 1/2 | 0.5 | 203.2 | 8 | 8 | 3.66 | 7.24 |
| SOLERA DE ALUMINIO 6061 T06 DE 12.7 X 254.0 MM | 6061 | T06 | 12.7 | 1/2 | 0.5 | 254 | 10 | 10 | 3.66 | 9.05 |
| SOLERA DE ALUMINIO 6061 T06 DE 12.7 X 304.8 MM | 6061 | T06 | 12.7 | 1/2 | 0.5 | 304.8 | 12 | 12 | 3.66 | 10.86 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 12.7 X 304.8 MM | 6061 | T06 | 12.7 | 1/2 | 0.5 | 304.8 | 12 | 12 | 3.66 | 10.86 |
| SOLERA DE ALUMINIO 6061 T06 DE 12.7 X 355.6 MM | 6061 | T06 | 12.7 | 1/2 | 0.5 | 355.6 | 14 | 14 | 3.66 | 12.67 |
| SOLERA DE ALUMINIO E/R 6061 T06 DE 15.9 X 69.8 MM | 6061 | T06 | 15.9 | 5/8 | 0.625 | 69.8 | 2 3/4 | 2.75 | 3.66 | 3.11 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 19.0 X 25.4 MM | 6061 | T06 | 19 | 3/4 | 0.75 | 25.4 | 1 | 1 | 3.66 | 1.35 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 19.0 X 38.1 MM | 6061 | T06 | 19 | 3/4 | 0.75 | 38.1 | 1 1/2 | 1.5 | 3.66 | 2.03 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 19.0 X 50.8 MM | 6061 | T06 | 19 | 3/4 | 0.75 | 50.8 | 2 | 2 | 3.66 | 2.71 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 19.0 X 76.2 MM | 6061 | T06 | 19 | 3/4 | 0.75 | 76.2 | 3 | 3 | 3.66 | 4.07 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 19.0 X 101.6 MM | 6061 | T06 | 19 | 3/4 | 0.75 | 101.6 | 4 | 4 | 3.66 | 5.43 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 19.0 X 152.4 MM | 6061 | T06 | 19 | 3/4 | 0.75 | 152.4 | 6 | 6 | 3.66 | 8.14 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 19.0 X 203.2 MM | 6061 | T06 | 19 | 3/4 | 0.75 | 203.2 | 8 | 8 | 3.66 | 10.86 |
| SOLERA DE ALUMINIO 6061 T06 DE 19.0 X 203.2 MM | 6061 | T06 | 19 | 3/4 | 0.75 | 203.2 | 8 | 8 | 3.66 | 10.86 |
| SOLERA DE ALUMINIO 6061 T06 DE 19.0 X 254.0 MM | 6061 | T06 | 19 | 3/4 | 0.75 | 254 | 10 | 10 | 3.66 | 13.58 |
| SOLERA DE ALUMINIO 6061 T06 DE 19.0 X 304.8 MM | 6061 | T06 | 19 | 3/4 | 0.75 | 304.8 | 12 | 12 | 3.66 | 16.29 |
| SOLERA DE ALUMINIO 6061 T06 DE 19.0 X 355.6 MM | 6061 | T06 | 19 | 3/4 | 0.75 | 355.6 | 14 | 14 | 3.66 | 19.01 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 25.4 X 38.1 MM | 6061 | T06 | 25.4 | 1 | 1 | 38.1 | 1 1/2 | 1.5 | 3.66 | 2.71 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 25.4 X 50.8 MM | 6061 | T06 | 25.4 | 1 | 1 | 50.8 | 2 | 2 | 3.66 | 3.62 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 25.4 X 63.5 MM | 6061 | T06 | 25.4 | 1 | 1 | 63.5 | 2 1/2 | 2.5 | 3.66 | 4.52 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 25.4 X 76.2 MM | 6061 | T06 | 25.4 | 1 | 1 | 76.2 | 3 | 3 | 3.66 | 5.43 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 25.4 X 101.6 MM | 6061 | T06 | 25.4 | 1 | 1 | 101.6 | 4 | 4 | 3.66 | 7.24 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 25.4 X 127 MM | 6061 | T06 | 25.4 | 1 | 1 | 127 | 5 | 5 | 3.66 | 9.05 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 25.4 X 152.4 MM | 6061 | T06 | 25.4 | 1 | 1 | 152.4 | 6 | 6 | 3.66 | 10.86 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 25.4 X 203.2 MM | 6061 | T06 | 25.4 | 1 | 1 | 203.2 | 8 | 8 | 3.66 | 14.48 |
| SOLERA DE ALUMINIO 6061 T06 DE 25.4 X 203.2 MM | 6061 | T06 | 25.4 | 1 | 1 | 203.2 | 8 | 8 | 3.66 | 14.48 |
| SOLERA DE ALUMINIO 6061 T06 DE 25.4 X 254.0 MM | 6061 | T06 | 25.4 | 1 | 1 | 254 | 10 | 10 | 3.66 | 18.11 |
| SOLERA DE ALUMINIO 6061 T06 DE 25.4 X 304.8 MM | 6061 | T06 | 25.4 | 1 | 1 | 304.8 | 12 | 12 | 3.66 | 21.73 |
| SOLERA DE ALUMINIO 6061 T06 DE 25.4 X 355.6 MM | 6061 | T06 | 25.4 | 1 | 1 | 355.6 | 14 | 14 | 3.66 | 25.35 |
| SOLERA DE ALUMINIO E/C 6061 T05 DE 31.7 X 44.4 MM | 6061 | T06 | 31.7 | 1 1/4 | 1.25 | 44.4 | 1 3/4 | 1.75 | 3.66 | 3.96 |
| SOLERA DE ALUMINIO 6061 T06 DE 31.7 X 101.6 MM | 6061 | T06 | 31.7 | 1 1/4 | 1.25 | 101.6 | 4 | 4 | 3.66 | 9.05 |
| SOLERA DE ALUMINIO 6061 T06 DE 31.7 X 152.4 MM | 6061 | T06 | 31.7 | 1 1/4 | 1.25 | 152.4 | 6 | 6 | 3.66 | 13.58 |
| SOLERA DE ALUMINIO 6061 T06 DE 31.7 X 203.2 MM | 6061 | T06 | 31.7 | 1 1/4 | 1.25 | 203.2 | 8 | 8 | 3.66 | 18.11 |
| SOLERA DE ALUMINIO 6061 T06 DE 31.7 X 254.0 MM | 6061 | T06 | 31.7 | 1 1/4 | 1.25 | 254 | 10 | 10 | 3.66 | 22.63 |
| SOLERA DE ALUMINIO 6061 T06 DE 31.7 X 304.8 MM | 6061 | T06 | 31.7 | 1 1/4 | 1.25 | 304.8 | 12 | 12 | 3.66 | 27.16 |
| SOLERA DE ALUMINIO 6061 T06 DE 31.7 X 355.6 MM | 6061 | T06 | 31.7 | 1 1/4 | 1.25 | 355.6 | 14 | 14 | 3.66 | 31.69 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 38.1 X 50.8 MM | 6061 | T06 | 38.1 | 1 1/2 | 1.5 | 50.8 | 2 | 2 | 3.66 | 5.43 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 38.1 X 76.2 MM | 6061 | T06 | 38.1 | 1 1/2 | 1.5 | 76.2 | 3 | 3 | 3.66 | 8.14 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 38.1 X 101.6 MM | 6061 | T06 | 38.1 | 1 1/2 | 1.5 | 101.6 | 4 | 4 | 3.66 | 10.86 |
| SOLERA DE ALUMINIO 6061 T06 DE 38.1 X 152.4 MM | 6061 | T06 | 38.1 | 1 1/2 | 1.5 | 152.4 | 6 | 6 | 3.66 | 16.29 |
| SOLERA DE ALUMINIO 6061 T06 DE 38.1 X 203.2 MM | 6061 | T06 | 38.1 | 1 1/2 | 1.5 | 203.2 | 8 | 8 | 3.66 | 21.73 |
| SOLERA DE ALUMINIO 6061 T06 DE 38.1 X 254.0 MM | 6061 | T06 | 38.1 | 1 1/2 | 1.5 | 254 | 10 | 10 | 3.66 | 27.16 |
| SOLERA DE ALUMINIO 6061 T06 DE 38.1 X 304.8 MM | 6061 | T06 | 38.1 | 1 1/2 | 1.5 | 304.8 | 12 | 12 | 3.66 | 32.59 |
| SOLERA DE ALUMINIO 6061 T06 DE 38.1 X 355.6 MM | 6061 | T06 | 38.1 | 1 1/2 | 1.5 | 355.6 | 14 | 14 | 3.66 | 38.03 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 50.8 X 76.2 MM | 6061 | T06 | 50.8 | 2 | 2 | 76.2 | 3 | 3 | 3.66 | 10.86 |
| SOLERA DE ALUMINIO E/C 6061 T06 DE 50.8 X 101.6 MM | 6061 | T06 | 50.8 | 2 | 2 | 101.6 | 4 | 4 | 3.66 | 14.48 |
| SOLERA DE ALUMINIO 6061 T06 DE 50.8 X 152.4 MM | 6061 | T06 | 50.8 | 2 | 2 | 152.4 | 6 | 6 | 3.66 | 21.73 |
| SOLERA DE ALUMINIO 6061 T06 DE 50.8 X 203.2 MM | 6061 | T06 | 50.8 | 2 | 2 | 203.2 | 8 | 8 | 3.66 | 28.97 |
| SOLERA DE ALUMINIO 6061 T06 DE 50.8 X 254.0 MM | 6061 | T06 | 50.8 | 2 | 2 | 254 | 10 | 10 | 3.66 | 36.22 |
| SOLERA DE ALUMINIO 6061 T06 DE 50.8 X 304.8 MM | 6061 | T06 | 50.8 | 2 | 2 | 304.8 | 12 | 12 | 3.66 | 43.46 |
| SOLERA DE ALUMINIO 6061 T06 DE 50.8 X 355.6 MM | 6061 | T06 | 50.8 | 2 | 2 | 355.6 | 14 | 14 | 3.66 | 50.70 |
| SOLERA DE ALUMINIO 6061 T06 DE 63.5 X 101.6 MM | 6061 | T06 | 63.5 | 2 1/2 | 2.5 | 101.6 | 4 | 4 | 3.66 | 18.11 |
| SOLERA DE ALUMINIO 6061 T06 DE 63.5 X 152.4 MM | 6061 | T06 | 63.5 | 2 1/2 | 2.5 | 152.4 | 6 | 6 | 3.66 | 27.16 |
| SOLERA DE ALUMINIO 6061 T06 DE 63.5 X 203.2 MM | 6061 | T06 | 63.5 | 2 1/2 | 2.5 | 203.2 | 8 | 8 | 3.66 | 36.22 |
| SOLERA DE ALUMINIO 6061 T06 DE 63.5 X 254.0 MM | 6061 | T06 | 63.5 | 2 1/2 | 2.5 | 254 | 10 | 10 | 3.66 | 45.27 |
| SOLERA DE ALUMINIO 6061 T06 DE 63.5 X 304.8 MM | 6061 | T06 | 63.5 | 2 1/2 | 2.5 | 304.8 | 12 | 12 | 3.66 | 54.33 |
| SOLERA DE ALUMINIO 6061 T06 DE 63.5 X 355.6 MM | 6061 | T06 | 63.5 | 2 1/2 | 2.5 | 355.6 | 14 | 14 | 3.66 | 63.38 |
| SOLERA DE ALUMINIO 6061 T06 DE 76.2 X 101.6 MM | 6061 | T06 | 76.2 | 3 | 3 | 101.6 | 4 | 4 | 3.66 | 21.73 |
| SOLERA DE ALUMINIO 6061 T06 DE 76.2 X 127.0 MM | 6061 | T06 | 76.2 | 3 | 3 | 127 | 5 | 5 | 3.66 | 27.16 |
| SOLERA DE ALUMINIO 6061 T06 DE 76.2 X 152.4 MM | 6061 | T06 | 76.2 | 3 | 3 | 152.4 | 6 | 6 | 3.66 | 32.59 |
| SOLERA DE ALUMINIO 6061 T06 DE 76.2 X 203.2 MM | 6061 | T06 | 76.2 | 3 | 3 | 203.2 | 8 | 8 | 3.66 | 43.46 |
| SOLERA DE ALUMINIO 6061 T06 DE 76.2 X 254.0 MM | 6061 | T06 | 76.2 | 3 | 3 | 254 | 10 | 10 | 3.66 | 54.33 |
| SOLERA DE ALUMINIO 6061 T06 DE 76.2 X 304.8 MM | 6061 | T06 | 76.2 | 3 | 3 | 304.8 | 12 | 12 | 3.66 | 65.19 |
| SOLERA DE ALUMINIO 6061 T06 DE 76.2 X 355.6 MM | 6061 | T06 | 76.2 | 3 | 3 | 355.6 | 14 | 14 | 3.66 | 76.06 |
| SOLERA DE ALUMINIO 6061 T06 DE 101.6 X 152.4 MM | 6061 | T06 | 101.6 | 4 | 4 | 152.4 | 6 | 6 | 3.66 | 43.46 |
| SOLERA DE ALUMINIO 6061 T06 DE 101.6 X 203.2 MM | 6061 | T06 | 101.6 | 4 | 4 | 203.2 | 8 | 8 | 3.66 | 57.95 |
| SOLERA DE ALUMINIO 6061 T06 DE 101.6 X 254.0 MM | 6061 | T06 | 101.6 | 4 | 4 | 254 | 10 | 10 | 3.66 | 72.44 |
| SOLERA DE ALUMINIO 6061 T06 DE 101.6 X 304.8 MM | 6061 | T06 | 101.6 | 4 | 4 | 304.8 | 12 | 12 | 3.66 | 86.92 |
| SOLERA DE ALUMINIO 6061 T06 DE 101.6 X 355.6 MM | 6061 | T06 | 101.6 | 4 | 4 | 355.6 | 14 | 14 | 3.66 | 101.41 |
